LED Strip Controller

Need the full setup? Our LED Strip Set includes the controller, a 5m strip, and a power supply.

Add individually addressable lighting to any room. Pre-flashed with WLED and ready to use out of the box. Hundreds of effects, palettes, and schedules, all running locally on the device.

Many LED strip controllers fail prematurely or come with frustrating limitations. We designed our LED Strip Controller from the ground up to fix the problems we'd experienced ourselves.

We even support 4-pin strips (common for 12V) with our 4-pin connectors.

What we've fixed

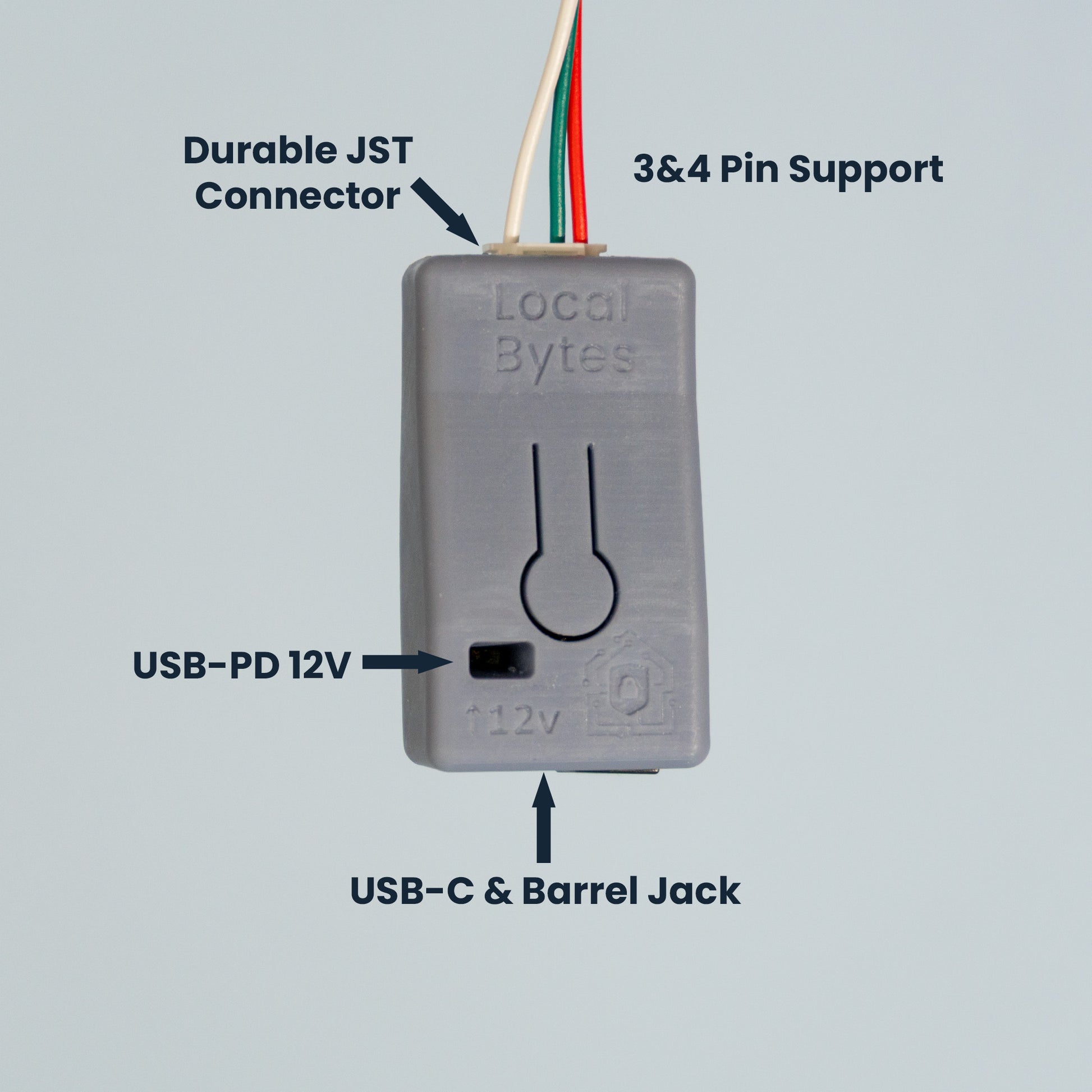

• Brittle soldered leads? We use crimped JST connectors instead of fragile soldered wires.
• Struggling to find the right power supply? Power it over USB-C. 5V by default, with USB-PD 12V available for 12V strips.
• Burnt-out voltage regulators? The controller itself runs on anything from 5V to 16V, so it won't cook itself the way cheaper boards do.
• Bad software? Pre-flashed with WLED, ready to use straight out of the box.

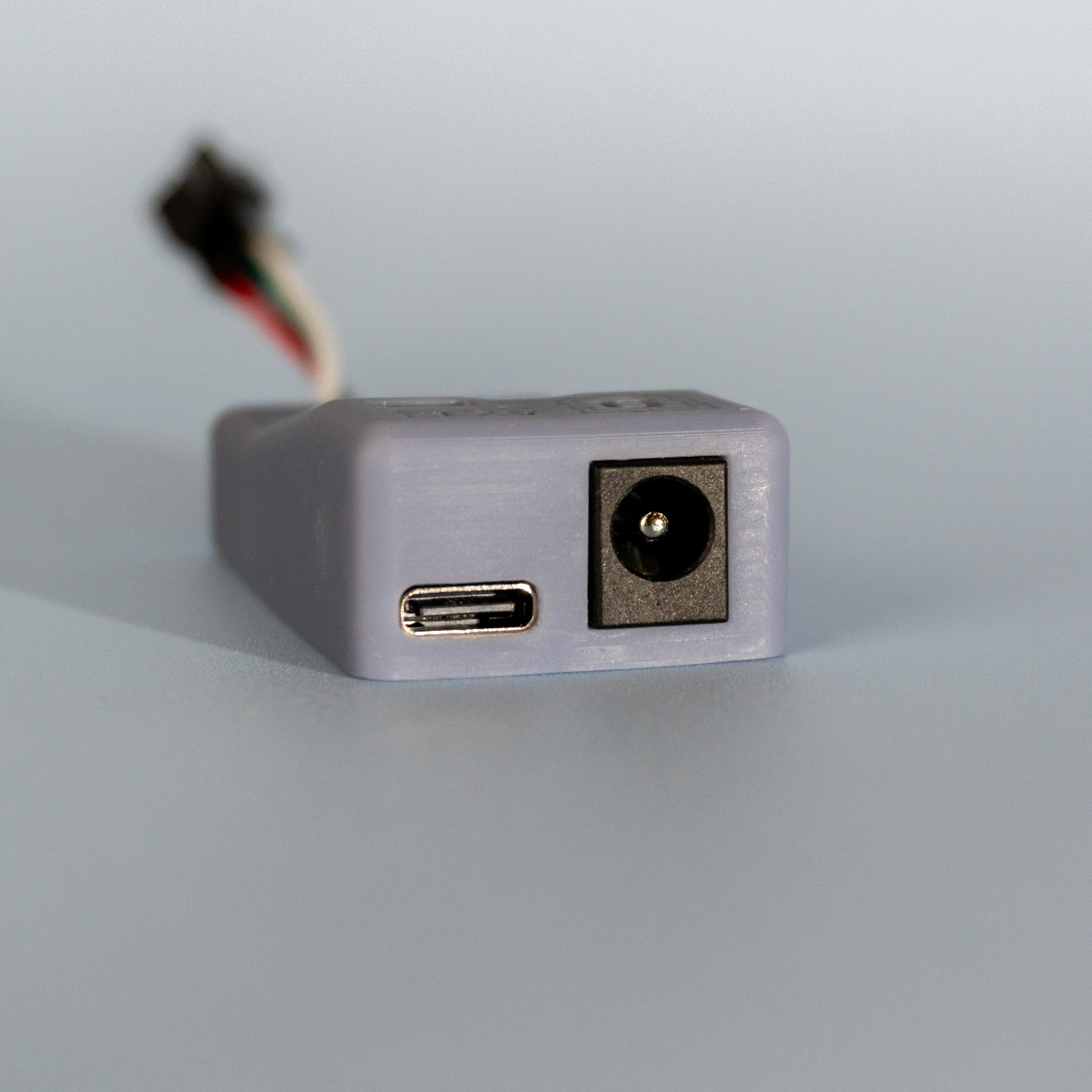

Power options

• USB-C (Power Delivery supported)
• 5.5mm DC barrel jack
• JST connector

All three inputs share a rail. If using the barrel jack, match your supply voltage to your strip. For USB-C, any PD-compatible supply will work; use the selector switch to request 12V if your strip needs it. [LocalBytes Blog / KB / Refs: Power]

New to WLED? [LocalBytes Blog / KB / Refs: QuickStart]
